Why should you choose Mucar BT200 Max OBD2 Scanner?
1. Built-in CAN FD Design
2. Added GM-LAN,Ford MS-CAN and ELM327 Protocals
3. Bi-directional/Active Test Lifetime Free
4. Work with dozens of popular third-party apps，sush as Torque, BimmerCode, Dashcommand, AlfaOBD （need check compatibility)
5. All System Diagnosis Lifetime Free
6. 15 Reset Service Lifetime Free
7. Support 120+ Car Brands,22 Languages
8. Print Diagnostic Report+Auto VIN Scan, Live Data Stream

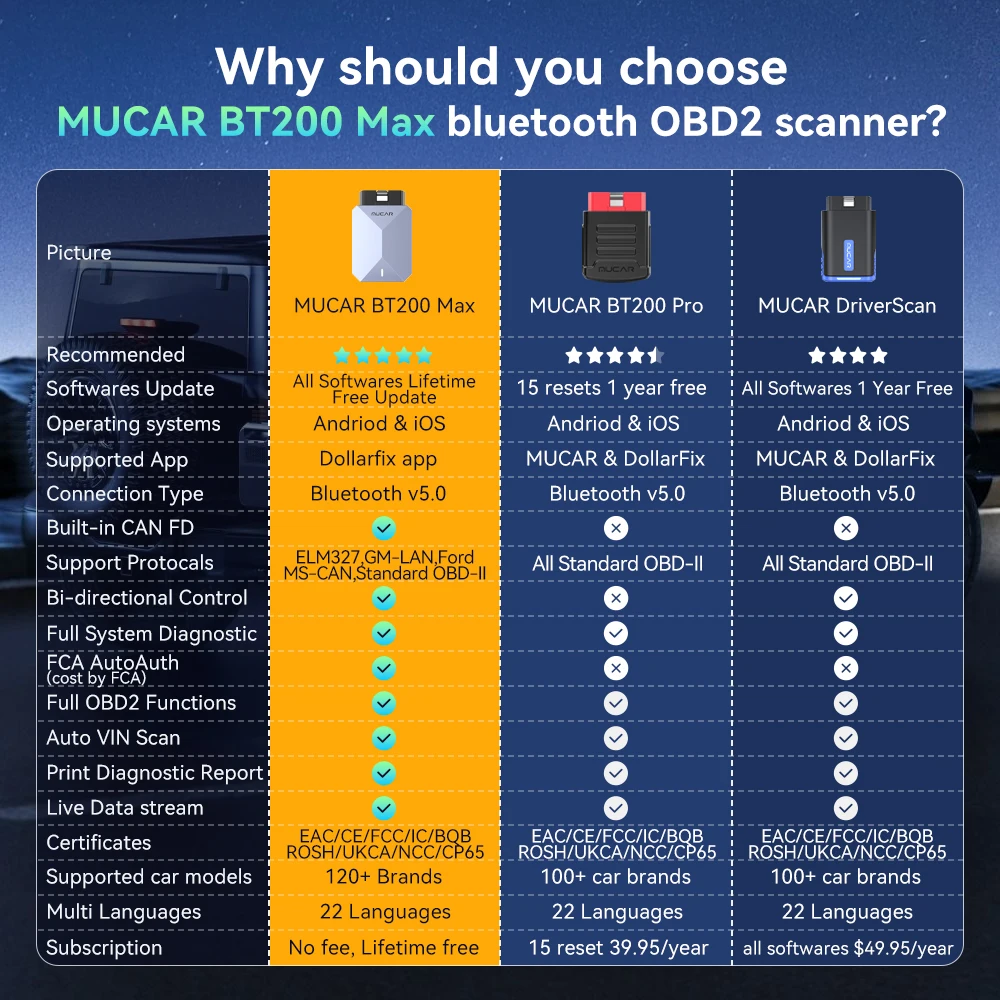

What is the difference between Mucar BT200 Max ,Mucar BT200 Pro and Mucar Driverscan ?
First AI Intelligent Diagnostic System
MUCAR BT200 MAX is the first bluetooth obd2 scanner with an AI diagnostic system .
Provide users with multi-dimensional,high-precision,industrial-grade technical support services.
Supports OBDII protocol & EOBD protocol and New Added GM-LAN,Ford MS-CAN, ELM327
1. Standard OBDII Agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)
2. New Added GM-LAN,Ford MS-CAN, ELM327 Agreement:
MUCAR BT200 Max supports EML327, GM-LAN and Ford-MSC proprietary vehicle networks that provide access to thousands of additional parameters that are off-limits to all other wireless OBD scanners.
Full Obd2 Functions
Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.
Built-in CAN FD Protocals
MUCAR BT200 Max OBD2 scanner is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
Support FCA Cars，Unlock More Functions
For the 2018+ FCA vehicles (For Fiat ,for Chrysler,for Jeep.for Alfa Romeo,etc)
For Renault SGW Access : Unlocking security gateway to perform service function ,active test ,coding ,programming ,etc
Note: FCA AutoAuth Access not free!!
There is an annual fee for Autoauth account, but the payment is charged by AutoAuth directly. THINKCAR & MUCAR is not involved in any transaction process.
Bi-Directional Control /Active test Lifetime Free
It is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.You can test whether the execution components work normally by bi-directionally monitoring the operation actuator.
Warm Tips
Active tests are NOT universal for all vehicles, please check compatibility with seller by Sending Car brand, model and VIN number before purchase.
All Cars Lifetime Free Full System Diagnostic Lifetime Free
MUCAR BT200 Max has the ability to access all available system and subsystems codes, and perform a comprehensive scanning on ECUs:
15 Resets Function Lifetime Free
1) Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2) EPB service
It is important in the maintenance of electronic braking system's safety and efficiency.
3) BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4) DPF service
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5) SAS service
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6) TPMS service
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7) IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8) ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
9) Sunroof Reset
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies
10) Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off
11) Gearbox Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12) AFS Headlamp Reset
AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel
13) Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off
14) Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
15) Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running"

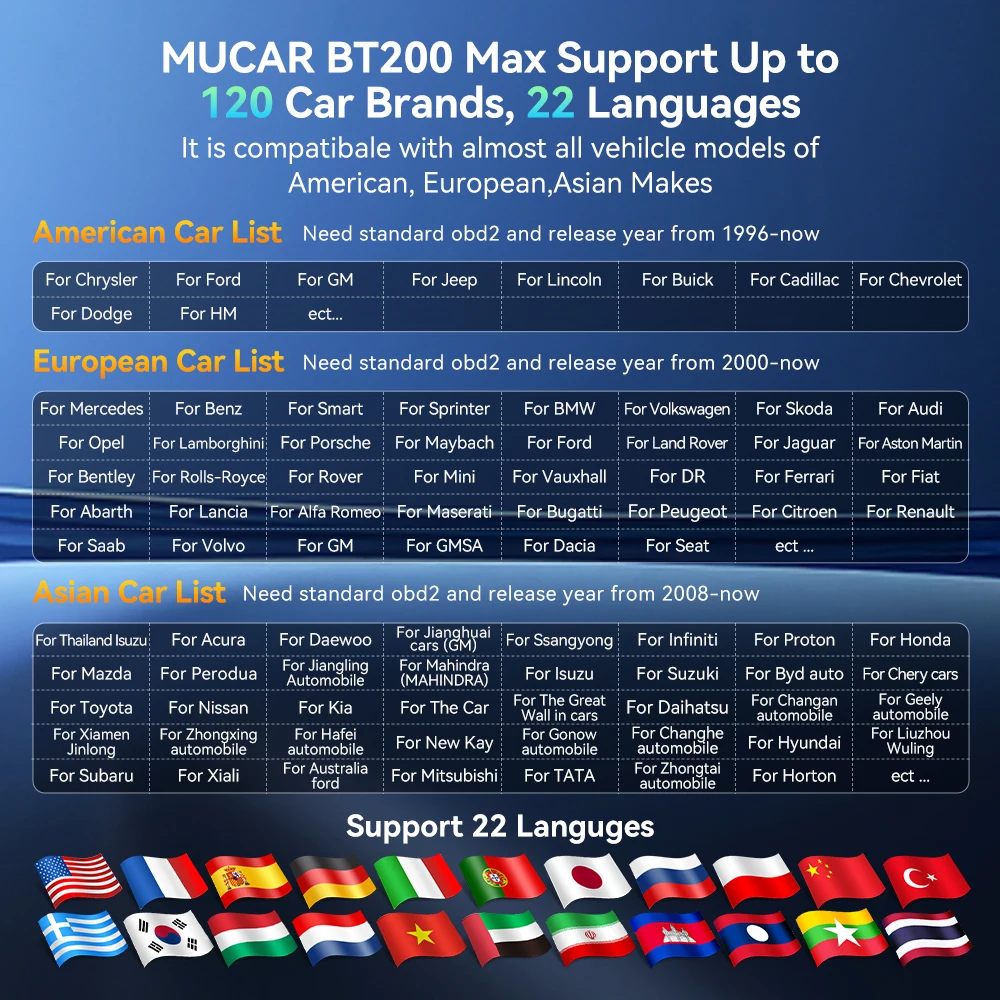

MUCAR BT200 Max Support Up to 120 Car Brands
It is compatibale with almost all vehilcle models of American, European,Asian Makes
American Car List:
Need standard obd2 and release year from 1996-now
For Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet,For Dodge, For HM, ect...
European Car List:
Need standard obd2 and release year from 2000-now
For Mercedes, For Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati,For Bugatti, For Peugeot, For Citroen, For Renault, For Saab, For Volvo, For GM, For GMSA, For Dacia, For Seat,ect ...
Asian Car List:
Need standard obd2 and release year from 2008-now
For Thailand Isuzu, For Acura, For Daewoo, For Jianghuai cars (GM), For Ssangyong, For Infiniti, For Proton, For Honda, For Mazda, For Perodua, For Jiangling Automobile, For Mahindra (MAHINDRA), For Isuzu, For Suzuki, For Byd auto, For Chery cars, For Toyota, For Nissan, For Kia, For The Car, For The Great Wall in cars, For Daihatsu, For Changan automobile, For Geely automobile, For Xiamen Jinlong, For Zhongxing automobile, For Hafei automobile, For New Kay, For Gonow automobile, For Changhe automobile, For Hyundai, For Liuzhou Wuling, For Subaru, For Xiali, For Australia ford, For Mitsubishi, For TATA, For Zhongtai automobile, For Horton, For MARUTI, For Lexus
Support 22 Languages
English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

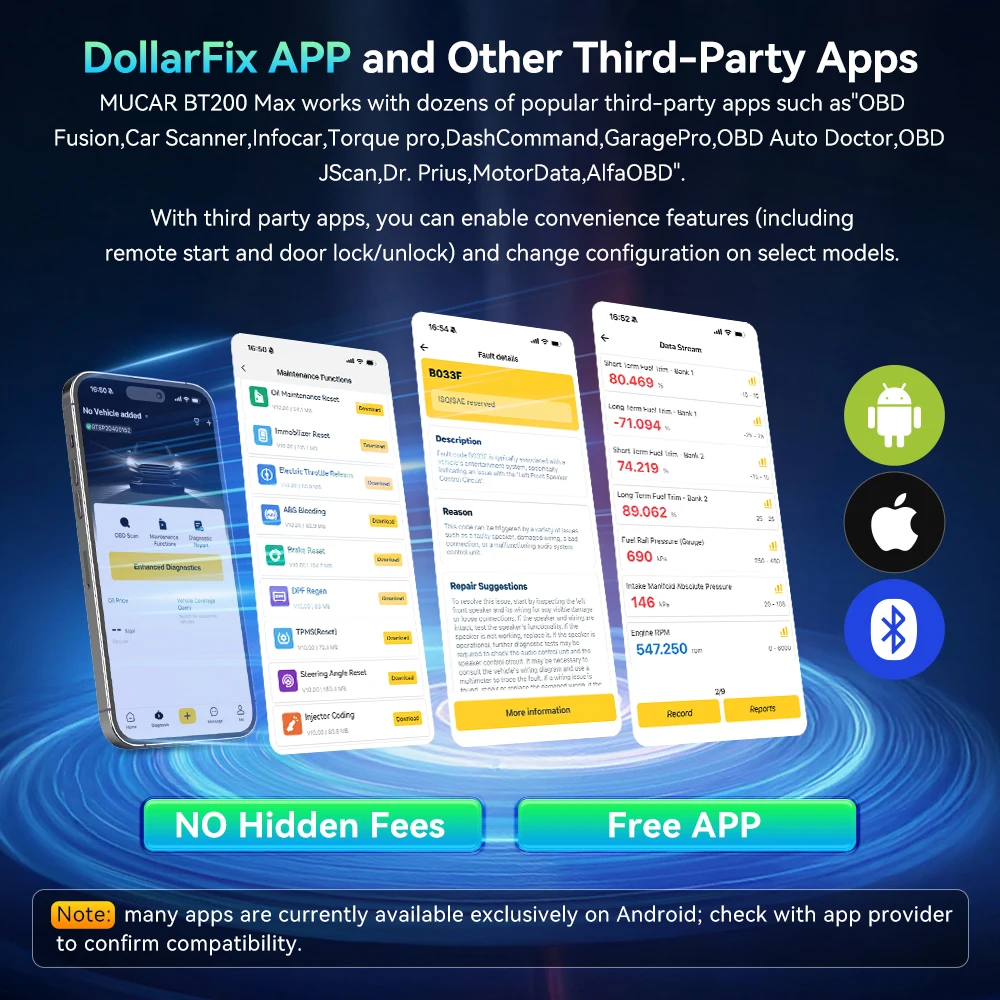

DollarFix APP and Other Third-Party Apps
MUCAR BT200 Max works with dozens of popular third-party apps such as"OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand,GaragePro,OBD Auto Doctor,OBD JScan,Dr. Prius,MotorData,AlfaOBD".
With third party apps, you can enable convenience features (including remote start and door lock/unlock) and change configuration on select models.
Note: many apps are currently available exclusively on Android; check with app provider to confirm compatibility.
Read Live Data Stream
Real-time data is visualized in a variety of formats, including graphs, numeric, meter displays and clear 4-in-1 data charts, allowing you to effortlessly monitor real-time performance. Data logging/reporting is available for playback and further analysis.
Intelligent Auto VIN
With intelligent AutoVIN quick recognition, it is easy to connect to your car without the need for manual input.

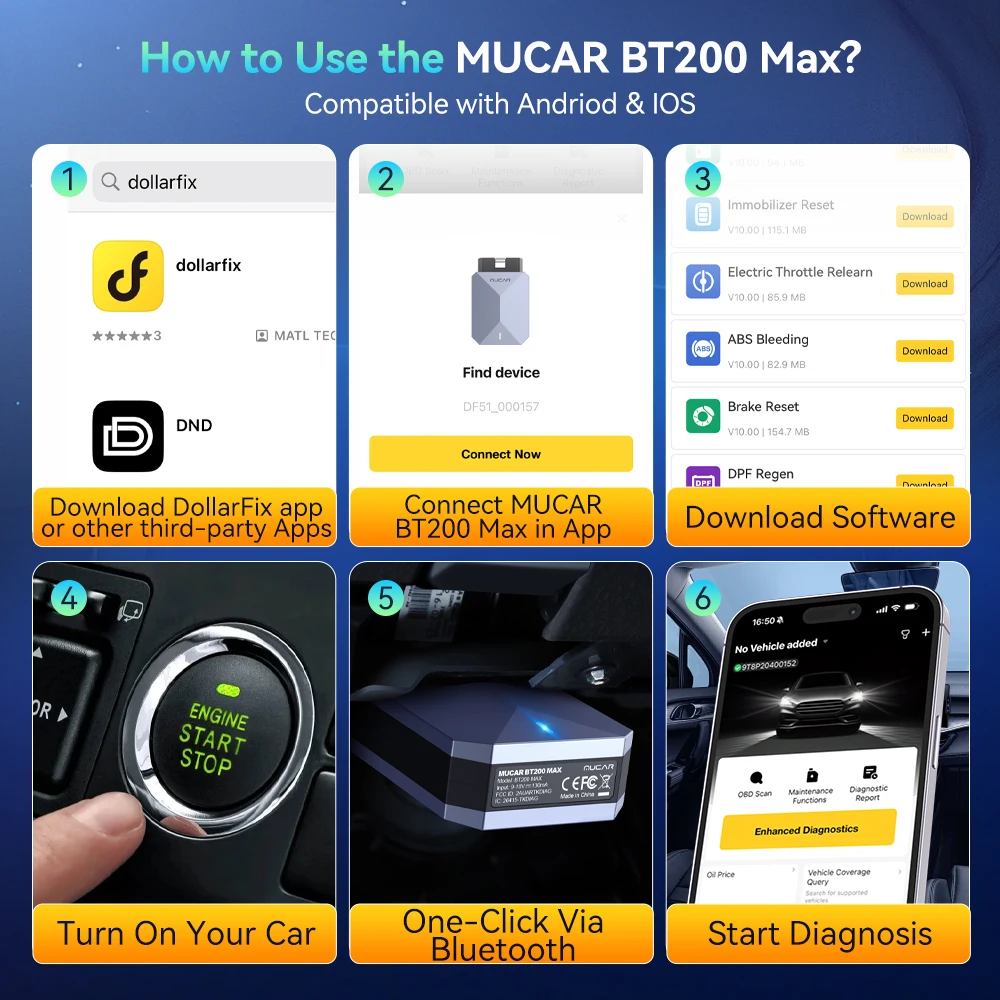

How to use Mucar BT200 MAX ?
Step 1 : Download Dollarfix APP or other third-party Apps
Step 2 : Connect Mucar BT200 Max in APP
Step 3 : Download Software
Step 4 : Turn On Your Car
Step 5 : One-click Via Bluetooth
Step 6 : Start Diagnosis

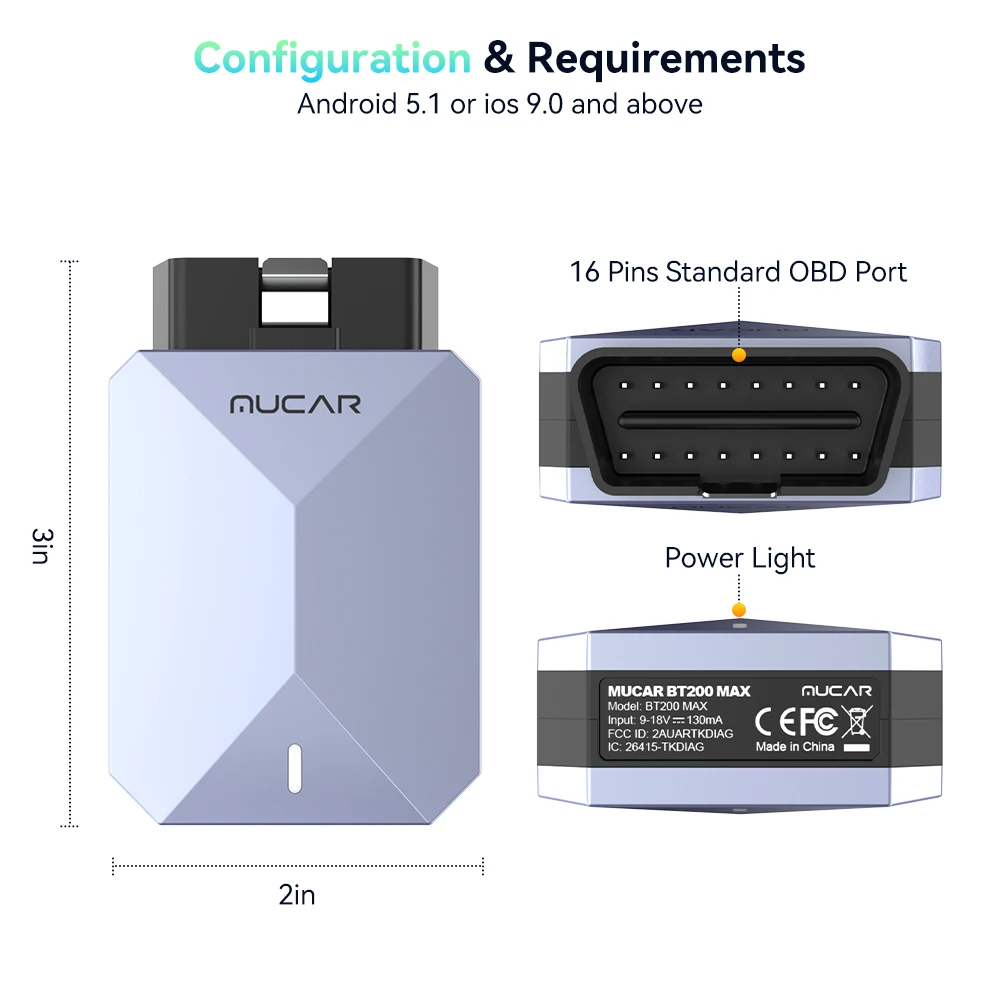

Configuration&Requirements
Android 5.1 or IOS 9.0 and above

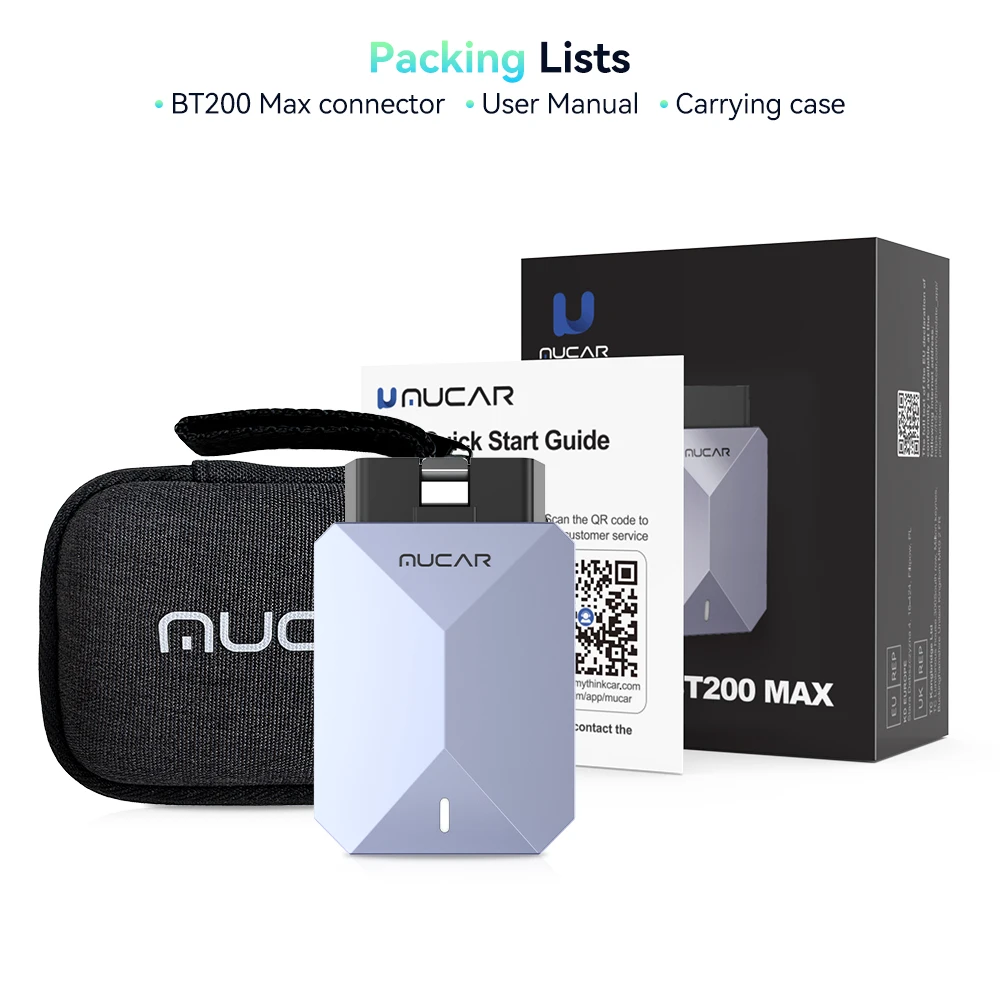

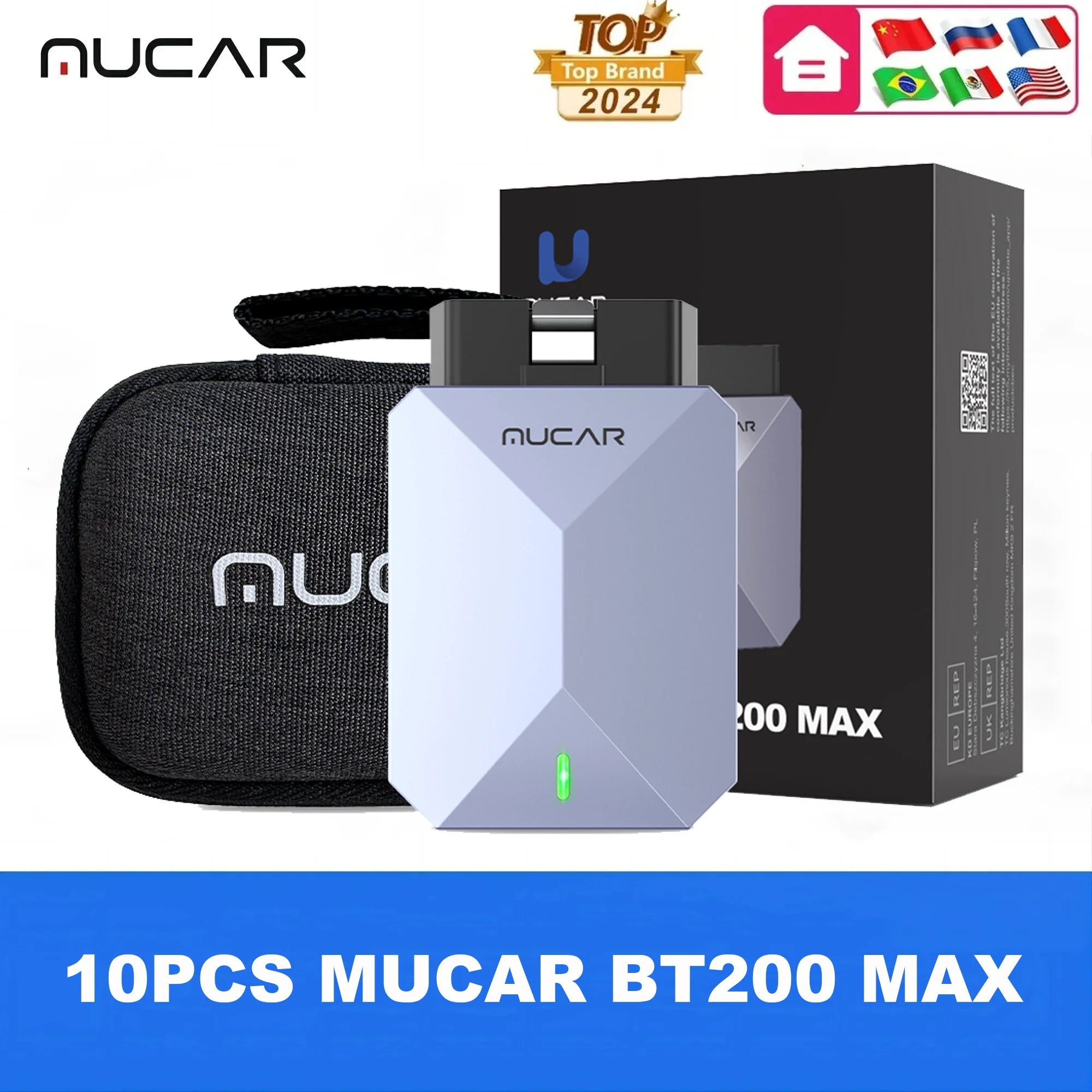

Packing List
1PC MUCAR BT200 MAX OBD2 Scanner
1PC Carry Case
1PC User Manual
