SPECIFICATIONS
AI Functions: Motion Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm,Motion detection/ Email notification/ App notification
App name: Other
Audio Output: Two Way Audio
Brand Name: TPTEK
Certification: CE,FCC
Choice: yes
Color Night Vision: Yes
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 90mmx95mm
Feature 1: Two Way Audio 5MP POE Camera
Feature 2: Color Night Vision 5MP POE Camera
High Definition: 5.0 Megapixels
High-concerned chemical: none
IP Rating: Other
IR Distance(m): 3Pcs Array Leds, 20M Night Vision
Installation: Ceiling,Side,Normal,Wall Mounted
Internal Storage: None
Lens (mm): 3.6mm
Lens Quantity: Single Lens
Material: ABS Plastic
Megapixels: 5 MP
Minimum Illumination(Lux): 0.001lux
Model Number: TP-XIPI2103E-P / TP-XIPI2105E-P
Movement Range(Pan): Other
Movement Range(Tilt): Other
Operating Temperature: -20°C - +60°C
Optical Zoom: NONE
Origin: Mainland China
PC Software: VMS (Local)
Power Consumption(W): 7W
Power Mode: Mains Electricity
Power Supply: With Poe
Power Supply(V): DC12V 1A/48V POE
Rechargeable Battery: NONE
Rechargeable Battery Capability: Other
Recording Device: NVR VMS, Blue Iris, Synology, Qnap
Remote View Phone APP: iCSee / XMEye / XMEye Pro
Resolution: 3MP/5MP Optional
Scene: Indoor
Sensor: CMOS
Sensor Brand: Sony
Seucurity camera type: PoE IP Camera for NVR System compatible with HIK NVR Camera
Shell Material: Plastic
Smart home platform: Other
Style: Dome Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
Two Way Audio PoE Camera: Built-in Microphone and Speaker
Video Compression Format: H.264,H.265
Viewing Angle : 85°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Working Temperature: -20°C - +60°C
Zoom: 4X
Zoom type: Digital zoom
is_customized: Yes

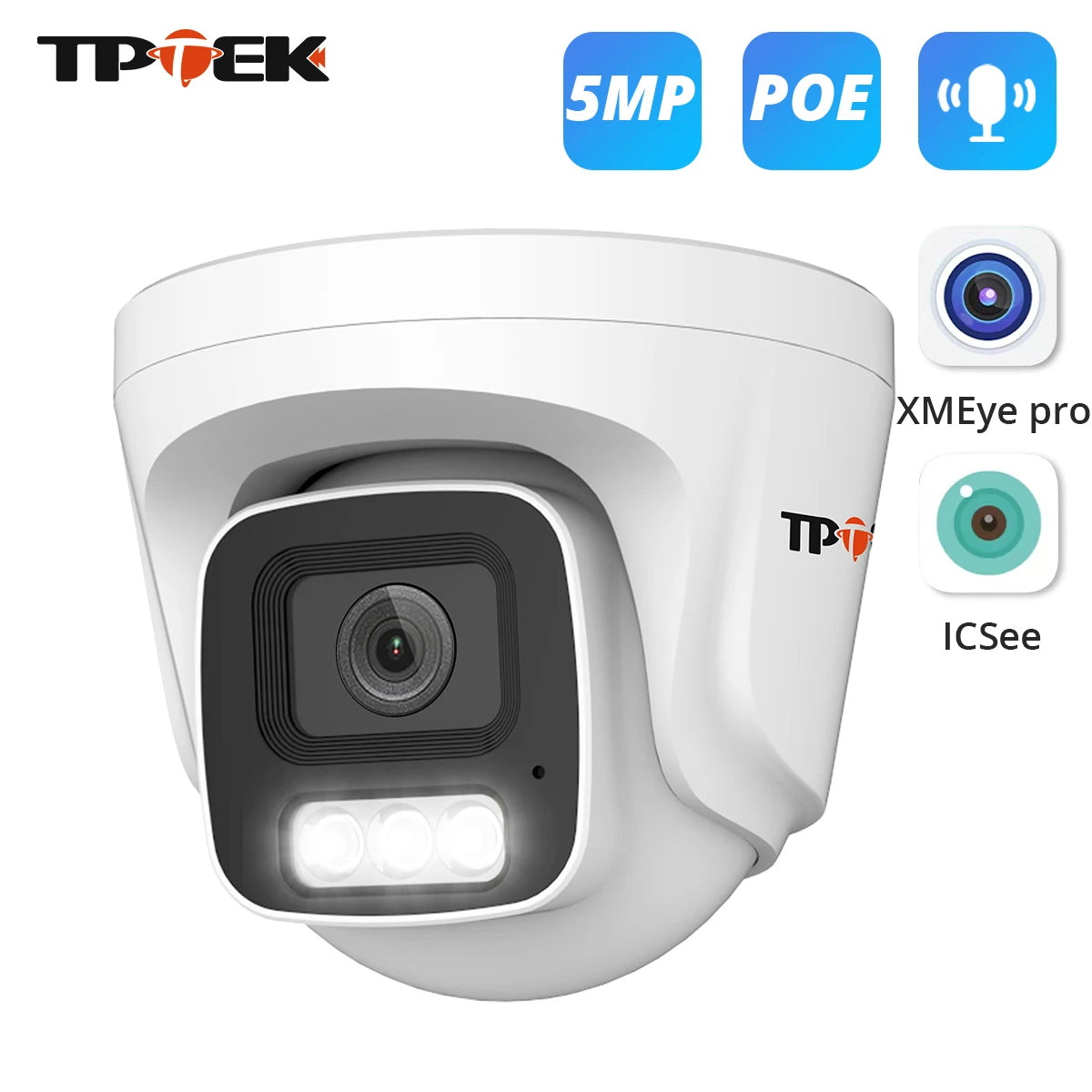

5MP IP Camera POE Indoor Surveillance H.265 Two Way Audio CCTV Color Night Vision Camera For POE System XMEye Pro iCSee Camera
3MP/5MP HD Resolution
TPTEK IP Camera Provide high quality video for both day and night vision, you can get exactly the details you need.
Two-Way Audio
Security ip camera built-in microphone and speaker, communicate directly with the outdoors for your convenience.
3 Modes of Night Vision
This IP camera equipped with high quality 3 spotlights and 3 infrared lights.
1) Color night vision for 15 meters;
2) IR night vision for 20meters;
3) You can use "Double Light Alert" mode: when the light is insufficient, the infrared light activates and the camera image is black and white. When the camera detects someone at night, the camera will turn off the infrared light and turn on the white light, meaning the night vision will switch to a color picture. At the same time, the camera will send an alarm message to the mobile app.
New H.265 Compression Technique:
Lower Bandwidth
Less Storage Space
Better Image Quality
Customizable Motion Detection Events
You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.
Double Warning for the Unwelcome
Once an intruder is detected, the camera's spotlights and siren will be triggered or manually activated to warn off the would-be criminal. Stop the crime before it happens.
No human movement can slip through without your notice. Receive instant app
push notifications, Email alerts and motion recording, when motion events are detected.
Remote Viewing, Anytime, Anywhere
Remotely access the ip camera to see live viewing via free XMeye Pro or iCSee App on your mobile device, free VMS on your computer, web browser (Only support IE browser).

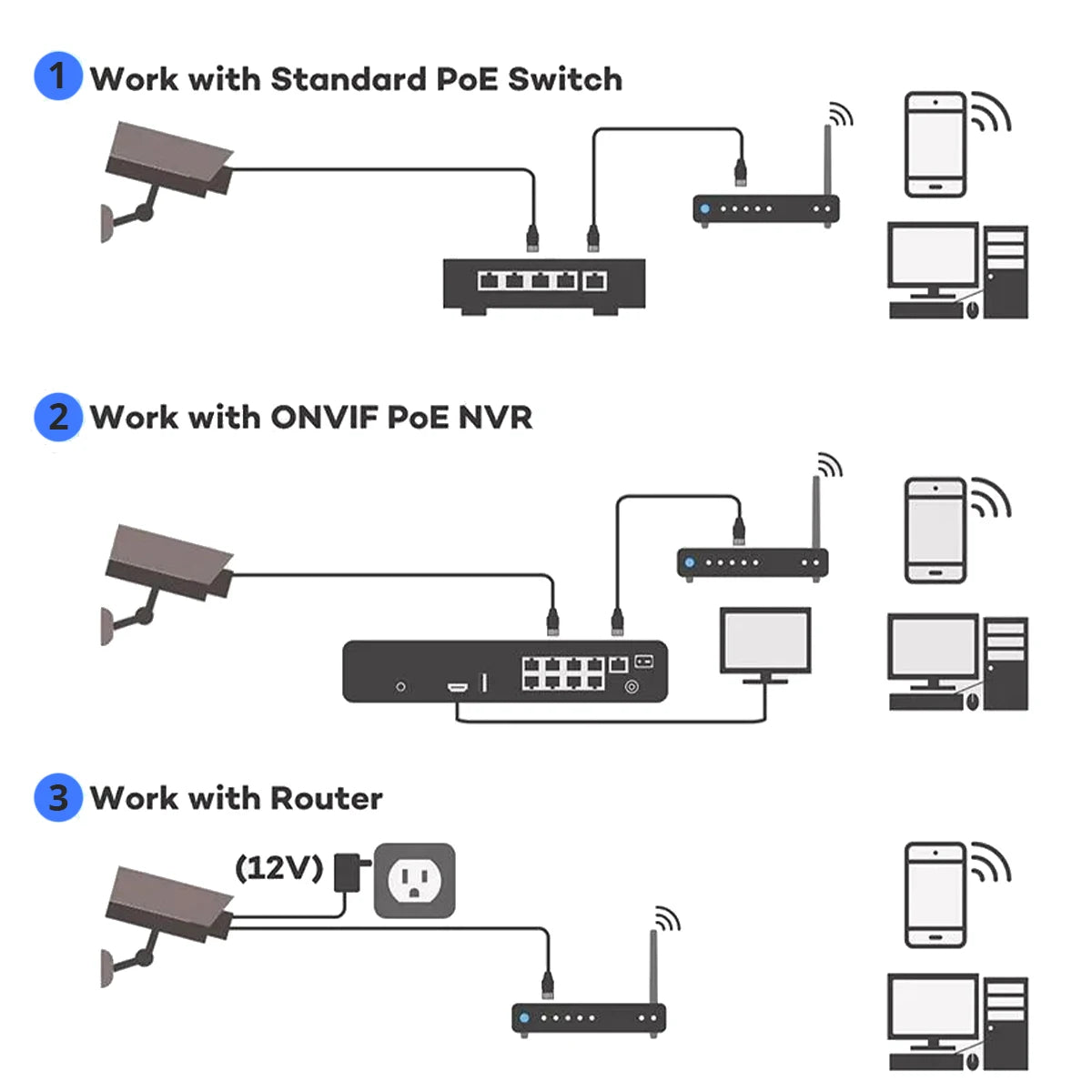

Connection method
1. Connect camera to PoE Switch.
2. Connect camera to PoE NVR.
3. Connect camera to No-PoE device.
Easy to Set up and Extraordinary Compatibility
Plug and Play with TPTEK NVR, come with privacy protocols, well work with Hikvision NVR and Dahua NVR. Save recordings to Synology and QNAP NAS Station.
Plug-and-play installation via PoE
Power over Ethernet means the IP cameras connect to with a single cable that transmits both data and power. No power adapter is required, lower risk of electric leakage and easy to set up.
No matter where you are, you can Through mobile APP remotely access the camera to see
Support XMEye Pro and iCSee APP.
